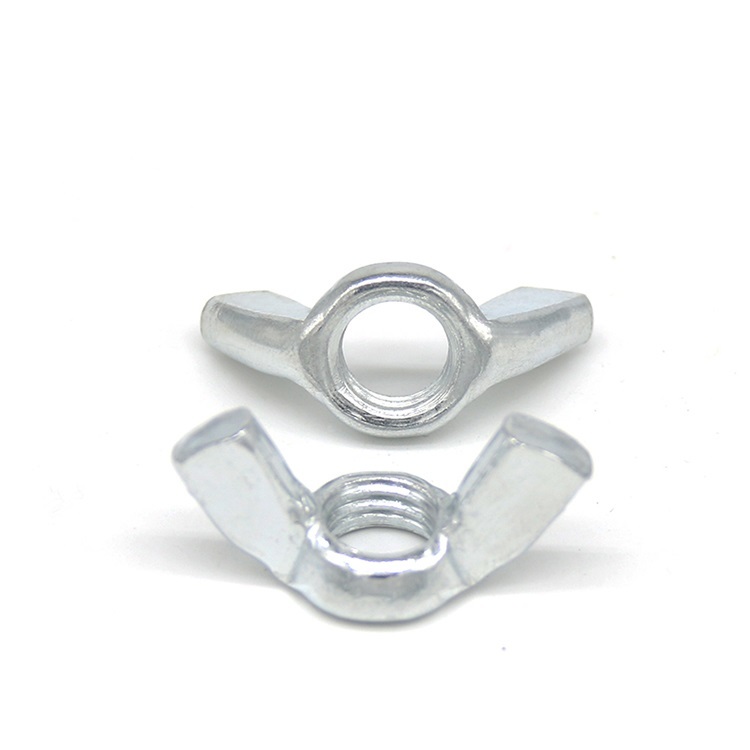

High Strength Grade 4 8 10 12 Steel Galvanized Blue White Zinc Plated DIN315 Butterfly Wing Nuts

Category: Prouct

Key words:

High Strength Grade 4 8 10 12 Steel Galvanized Blue White Zinc Plated DIN315 Butterfly Wing Nuts

We are committed to become the world's top fastening solutions provider, let Chinese prod-uct enterworld class, let the Chengyi production become synonymous with quality. To this end we need perseverance. At the same time, we also shoulder the responsibility of the society and the expectations of theemployees. In the future, we will become a respected enterprise.

Email us:admin@hbcy-fastener.com

Related Products


Product Details


 Product Photos and Information

Name Wing Nuts Materials Carbon Steel/Stainless Steel
Standards DIN ISO UNC BSW JIS etc. Strength level 4 5 8
Size M3-M12 Surface finish ZP\HDG\BLACK\Dacromet etc.
Length 15-35 Samples Available

Product Standards

Wing Nuts DIN 315

Thread specification M4 M5 M6 M8 M10 M12 M16 M20 M24
d
P pitch 0.7 0.8 1 1.25 1.5 1.75 2 2.5 3
dk maximum value 8 11 13 16 20 twenty three 29 35 44
minimum 6 8 10 13 17 20 26 32 41
ds maximum value 7 9 11 12.5 16.5 19.5 twenty three 29 37.5
minimum 5.5 7.5 9 10.5 14.5 17.5 twenty one 27 35
L maximum value 20 26 33 39 51 65 73 90 110
minimum 18 twenty four 30 36 48 62 70 86 106
Y maximum value 1.9 2.3 2.3 2.8 4.4 4.9 6.4 6.9 9.4
minimum 1.1 1.5 1.5 2 3.6 4.1 5.6 6.1 8.6
y 1 maximum value 2.3 2.8 3.3 4.4 5.4 6.4 7.5 8 10.5
minimum 1.7 2.3 2.7 3.6 4.6 5.6 6.5 7 9.5
k maximum value 10.5 13 17 20 25 33.5 37.5 46.5 56.5
minimum 8.5 11 15 18 twenty three 31 35 44 53.5
m maximum value 4.6 6.5 8 10 12 14 17 twenty one 25
minimum 3.2 4 5 6.5 8 10 13 16 20
r 2 2.5 3 3 5 6 7 8 9
R 3 4 5 6 8 10 11 14 18
①,Material: a) Malleable cast iron GT: GTS or GTW is determined by the manufacturer;
b) Steel St: Forging or cold working is determined by the manufacturer;
c) Copper-zinc alloy CuZn: A malleable alloy or cast alloy is determined by the manufacturer;
d) Austenitic Stainless Steel A: Grade determined by manufacturer
