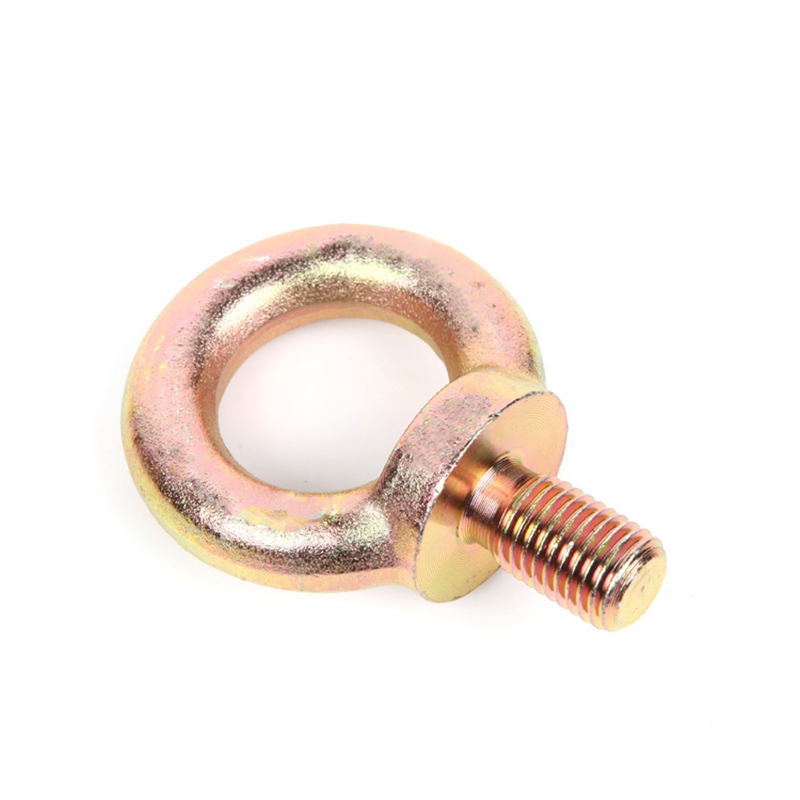

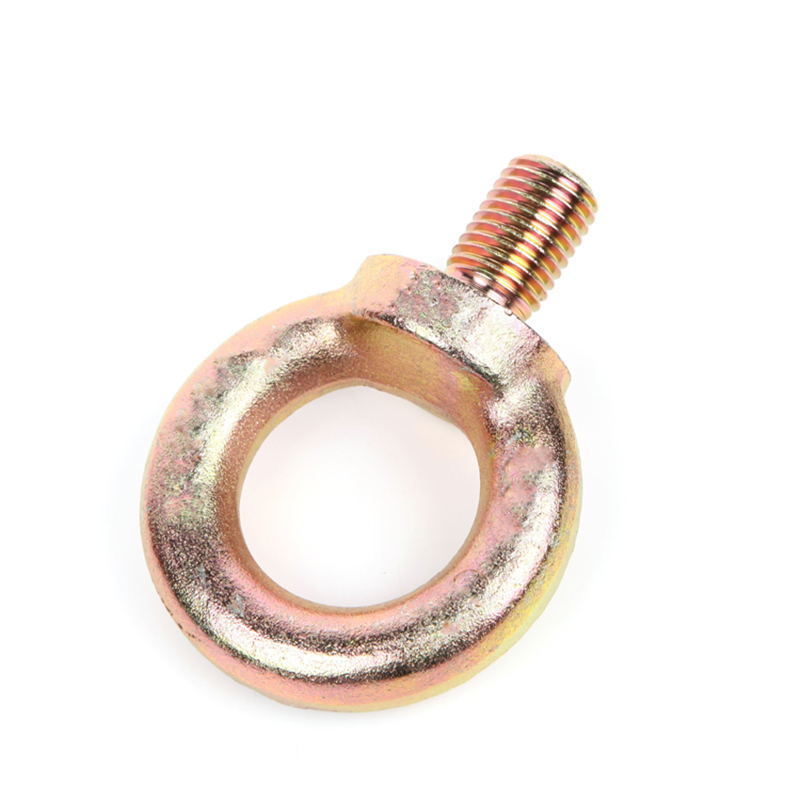

High Strength Grade 4.8 8.8 10.9 12.9 Steel Color Yellow Zinc Plated DIN580 Eye Bolts

Category: Prouct

Key words:

High Strength Grade 4.8 8.8 10.9 12.9 Steel Color Yellow Zinc Plated DIN580 Eye Bolts

We are committed to become the world's top fastening solutions provider, let Chinese prod-uct enterworld class, let the Chengyi production become synonymous with quality. To this end we need perseverance. At the same time, we also shoulder the responsibility of the society and the expectations of theemployees. In the future, we will become a respected enterprise.

Email us:admin@hbcy-fastener.com

Related Products


Product Details


 Product Photos and Information

Name Eye bolts Materials Carbon Steel/Stainless Steel
Standards DIN ISO UNC BSW JIS etc. Strength level 4.8 8.8 10.9 12.9 A2-70 A4-70 A4-80
Size M3-M50 Surface finish ZP\HDG\BLACK\Dacromet etc.
Length 15-500 Samples Available

Product Standards

Eyebolts DIN 580

Thread specification M8 M10 M12 M16 M20 M24 M30 M36 M42 M48 M56 M64 M72×6 M80×6 M100×6
d
d 2 Nominal 20 25 30 35 40 50 65 75 85 100 110 120 150 170 190
minimum 19.5 24.5 29.5 34.5 39.3 49.3 64.3 74.3 84.2 99.1 108.9 118.8 148.7 168.5 188.5
maximum value 21.1 26.1 31.1 36.2 41.3 51.3 66.3 76.5 86.7 101.9 112.1 122.4 152.7 173 193
d 3 Nominal 36 45 54 63 72 90 108 126 144 166 184 206 260 296 330
minimum 35.4 44.4 53.4 62.4 71.3 89.3 107.3 125.2 143.1 164.8 182.8 204.7 258.3 294.3 328.3
maximum value 37.2 46.2 55.2 64.2 73.3 91.3 109.5 127.7 145.9 168.4 186.4 208.7 263.3 299.3 333.3
d 4 Nominal 20 25 30 35 40 50 60 70 80 90 100 110 140 160 180
minimum 18.9 23.9 28.9 33.8 38.7 48.7 58.7 68.5 78.3 88.1 98.1 107.6 137.3 157.3 177
maximum value 20.5 25.5 30.5 35.6 40.7 50.7 60.7 70.7 80.8 90.9 100.9 111.2 141.3 161.3 181.5
and Nominal 6 8 10 12 14 18 twenty two 26 30 35 38 42 50 55 60
minimum 5.5 7.5 9.5 11.5 13.4 17.4 21.4 25.3 29.3 34.1 37.1 40.9 48.8 53.8 58.8
maximum value 7.1 9.1 11.1 13.1 15.2 19.2 23.2 27.3 31.5 36.9 39.9 44.1 52.4 57.4 62.4
f maximum value 2.5 3 3.5 4 5 6 7 8 9 10 11 12 12 12 12
ds max = nominal 6 7.7 9.4 13 16.4 19.6 25 30.3 35.6 41 48.3 55.7 63.7 71.7 91.7
minimum 5.82 7.48 9.18 12.73 16.13 19.27 24.67 29.91 35.21 40.61 47.91 55.24 63.24 71.24 91.16
h Nominal 36 45 53 62 71 90 109 128 147 168 187 208 260 298 330
minimum 35.4 44.4 52.4 61.4 70.3 89.3 108.3 127.2 146.1 166.8 185.8 206.7 258.3 296.3 328.3
maximum value 37.2 46.2 54.2 63.2 72.3 91.3 110.5 129.7 148.9 168.4 189.4 210.7 263.3 301.3 333.3
k Nominal 8 10 12 14 16 20 twenty four 28 32 38 42 48 60 68 75
minimum 7.5 9.5 11.5 13.5 15.4 19.4 23.4 27.3 31.3 37.1 41.1 46.9 58.8 66.8 73.8
maximum value 9.1 11.1 13.1 15.1 17.2 21.2 25.2 29.3 33.5 39.9 43.9 50.1 62.4 70.4 77.4
L Nominal 13 17 20.5 27 30 36 45 54 63 68 78 90 100 112 130
minimum 12.71 16.71 20.15 26.65 29.58 35.5 44.5 53.5 62.5 67.5 77.4 89.4 99.4 111.3 129.2
maximum value 13.29 17.29 20.85 27.35 30.42 36.5 45.5 54.5 63.5 68.5 78.6 90.6 100.6 112.7 130.7
m Nominal 10 12 14 16 19 twenty four 28 32 38 46 50 58 72 80 88
minimum 9.5 11.5 13.5 15.5 18.4 23.4 27.4 31.3 37.2 45.1 49.1 56.9 70.8 78.8 86.8
maximum value 11.1 13.1 15.1 17.1 20.2 25.2 29.2 33.3 39.5 47.9 51.9 60.1 74.4 82.4 90.4
Single weight (steel)≈kg 0.06 0.11 0.18 0.28 0.45 0.74 1.66 2.65 4.03 6.38 8.8 12.4 23.3 34.2 49.1
