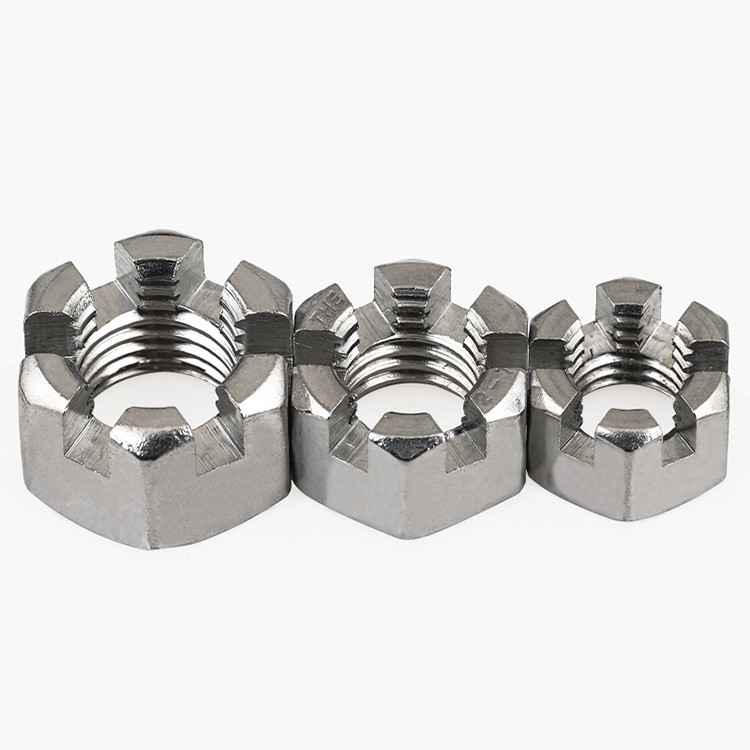

Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN935 Castle Nuts

Category: Prouct

Key words:

Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN935 Castle Nuts

We are committed to become the world's top fastening solutions provider, let Chinese prod-uct enterworld class, let the Chengyi production become synonymous with quality. To this end we need perseverance. At the same time, we also shoulder the responsibility of the society and the expectations of theemployees. In the future, we will become a respected enterprise.

Email us:admin@hbcy-fastener.com

Related Products


Product Details


 Product Photos and Information

Name Castle Nuts Materials Carbon Steel/Stainless Steel
Standards DIN ISO UNC BSW JIS etc. Strength level 4 5 8 10 12 A2-70 A4-70 A4-80 etc.
Size M3-M50 Surface finish ZP\HDG\BLACK\Dacromet etc.
Length 8-32 Samples Available

Product Standards

Hexagonal Slotted Nuts DIN 935

Thread size M4 M5 M6 (M7) M8 M10 M10 M12 M12 (M14) (M14) M16
d
P Pitch (coarse) 0.7 0.8 1 1 1.25 1.5 1.5 1.75 1.75 2 2 2
fine teeth - - - - 1 1.25 1.25 1.5 1.5 1.5 1.5 1.5
fine teeth - - - - - 1 1 1.25 1.25 - - -
d a minimum 4 5 6 7 8 10 10 12 12 14 14 16
maximum value 4.6 5.75 6.75 7.75 8.75 10.8 10.8 13 13 15.1 15.1 17.3
from _ maximum value / / / / / / / 16 17 18 19 twenty two
minimum / / / / / / / 15.57 16.57 17.57 18.48 21.48
dw minimum 5.8 6.8 8.8 9.5 11.3 14.3 15.3 16.2 17.2 19.2 20.2 22.2
and minimum 7.66 8.79 11.05 12.12 14.38 17.77 18.9 20.03 21.1 23.35 24.49 26.75
m max = nominal 5 6 7.5 8 9.5 12 12 15 15 16 16 19
minimum 4.7 5.7 7.14 7.64 9.14 11.57 11.57 14.57 14.57 15.57 15.57 18.48
m 1 2.3 3 3.8 4.2 4.9 6.1 6.1 7.7 7.7 8.2 8.2 9.8
n minimum 1.2 1.4 2 2 2.5 2.8 2.8 3.5 3.5 3.5 3.5 4.5
maximum value 1.45 1.65 2.25 2.25 2.75 3.05 3.05 3.8 3.8 3.8 3.8 4.8
s max = nominal 7 8 10 11 13 16 17 18 19 twenty one twenty two twenty four
minimum 6.78 7.78 9.78 10.73 12.73 15.73 16.73 17.73 18.67 20.67 21.67 23.67
in minimum 2.9 3.7 4.7 5.2 6.14 7.64 7.64 9.64 9.64 10.57 10.57 12.57
maximum value 3.2 4 5 5.5 6.5 8 8 10 10 11 11 13
Type ② Cotter pins according to DIN 94 1x10 1.2x12 1.6x14 1.6x14 2x16 2.5x20 2.5x20 3.2x22 3.2x22 3.2x25 3.2x25 4x28
Thousand pieces (steel)≈kg 1.12 2.3 3.16 3.96 7.35 15.8 15.8 20 20 27 27 38.9
thread size (M18) M20 (M22) (M22) M24 (M27) M30 (M33) M36 (M39) M42 (M45)
d
P Pitch (coarse) 2.5 2.5 2.5 2.5 3 3 3.5 3.5 4 4 4.5 4.5
fine teeth 1.5 2 1.5 1.5 2 2 2 2 3 3 3 3
fine teeth 2 1.5 2 2 - - - - - - - -
d a minimum 18 20 twenty two twenty two twenty four 27 30 33 36 39 42 45
maximum value 19.5 21.6 23.8 23.8 25.9 29.2 32.4 35.6 38.9 42.1 45.4 48.6
from _ maximum value 25 28 30 32 34 38 42 46 50 55 58 62
minimum 24.3 27.3 29.3 31 33 37 41 45 49 53.8 56.8 60.8
dw minimum 24.8 27.7 29.5 31.3 33.2 38 42.7 46.6 51.1 55.9 60.6 64.7
and minimum 29.56 32.95 35.03 37.29 39.55 45.2 50.85 55.37 60.79 66.44 71.3 76.95
m max = nominal twenty one twenty two 26 26 27 30 33 35 38 40 46 48
minimum 20.16 21.16 25.16 25.16 26.16 29.16 32 34 37 39 45 47
m 1 11.2 11.9 13.5 13.5 14.2 16.6 18.2 19.8 21.9 23.5 25.9 27.5
n minimum 4.5 4.5 5.5 5.5 5.5 5.5 7 7 7 7 9 9
maximum value 4.8 4.8 5.8 5.8 5.8 5.8 7.36 7.36 7.36 7.36 9.36 9.36
s max = nominal 27 30 32 34 36 41 46 50 55 60 65 70
minimum 26.16 29.16 31 33 35 40 45 49 53.8 58.8 63.1 68.1
in minimum 14.57 15.57 17.57 17.57 18.48 21.48 23.48 25.48 28.48 30.28 33.38 35.38
maximum value 15 16 18 18 19 twenty two twenty four 26 29 31 34 36
Type ② Cotter pins according to DIN 94 4x32 4x36 5x36 5x36 5x40 5x45 6.3x50 6.3x56 6.3x63 6.3x71 8x71 8x80
Thousand pieces (steel)≈kg 57.5 75.2 93 93 131 192 264 333 447 584 710 860
thread size M48 (M52) M56 (M60) M64 (M68) M72 (M76) M80 (M85) M90 M100
d
P Pitch (coarse) 5 5 5.5 5.5 6 6 - - - - - -
fine teeth 3 3 4 4 4 4 6 6 6 6 6 6
fine teeth - - - - - - 4 4 4 4 4 4
d a minimum 48 52 56 60 64 68 72 76 80 85 90 100
maximum value 51.8 56.2 61 64.8 69.1 73.4 77.8 82.1 86.4 91.8 97.2 108
from _ maximum value 65 70 75 80 85 90 95 100 105 110 120 130
minimum 63.8 68.8 73.8 78.8 83.6 88.6 93.6 98.6 103.6 108.6 118.6 128.4
dw minimum 69.4 74.2 78.7 83.4 88.2 92.9 97.7 102.4 107.2 111.9 121.1 135.4
and minimum 82.6 88.25 93.56 99.21 104.86 110.51 116.16 121.81 127.46 133.11 144.08 161.02
m max = nominal 50 54 57 63 66 69 73 76 79 88 92 100
minimum 49 52.8 55.8 61.8 64.8 67.8 71.8 74.8 77.8 86.6 90.6 98.6
m 1 29.1 32.3 34.7 37.1 39.3 41.7 44.9 47.3 49.7 52.9 56.1 62.5
n minimum 9 9 9 11 11 11 11 11 11 14 14 14
maximum value 9.36 9.36 9.36 11.43 11.43 11.43 11.43 11.43 11.43 14.43 14.43 14.43
s max = nominal 75 80 85 90 95 100 105 110 115 120 130 145
minimum 73.1 78.1 82.8 87.8 92.8 97.8 102.8 107.8 112.8 117.8 127.5 142.5
in minimum 37.38 41.38 44.38 47.38 50.26 53.26 57.26 60.26 63.26 67.26 71.26 79.26
maximum value 38 42 45 48 51 54 58 61 64 68 72 80
Type ② Cotter pins according to DIN 94 8x80 8x90 8x100 10x100 10x100 10x112 10x112 10x125 10x140 13x140 13x140 13x160
Thousand pieces (steel)≈kg 1060 1300 1500 1800 2150 2500 2900 3300 3700 4100 5450 7600
