Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN25201 Double Fold Self-Lock Washers
Key words：
Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN25201 Double Fold Self-Lock Washers
We are committed to become the world's top fastening solutions provider, let Chinese prod-uct enterworld class, let the Chengyi production become synonymous with quality. To this end we need perseverance. At the same time, we also shoulder the responsibility of the society and the expectations of theemployees. In the future, we will become a respected enterprise.
Email us：admin@hbcy-fastener.com
Related Products
Product Details

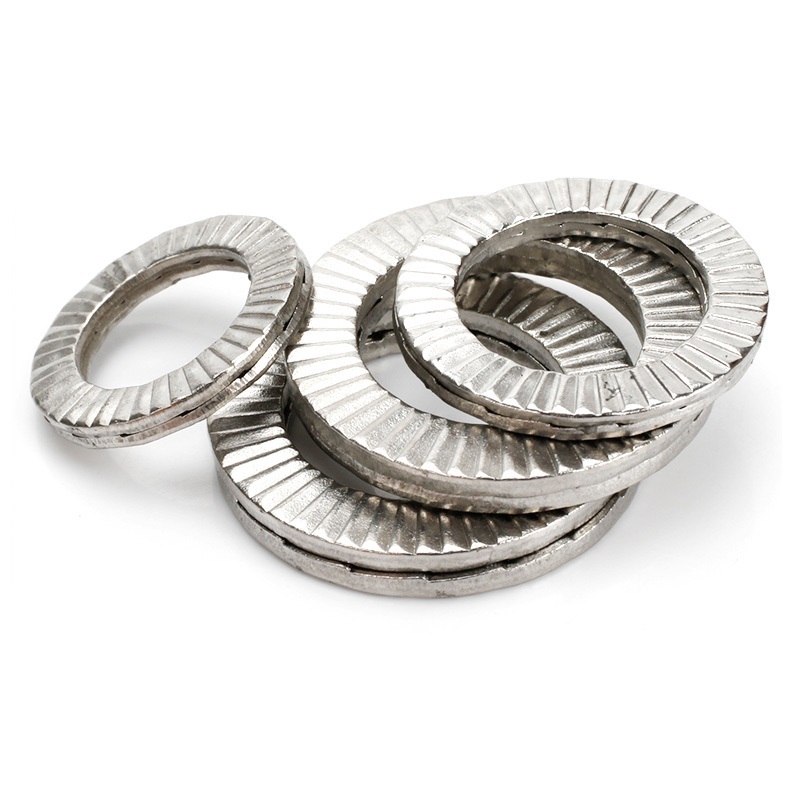

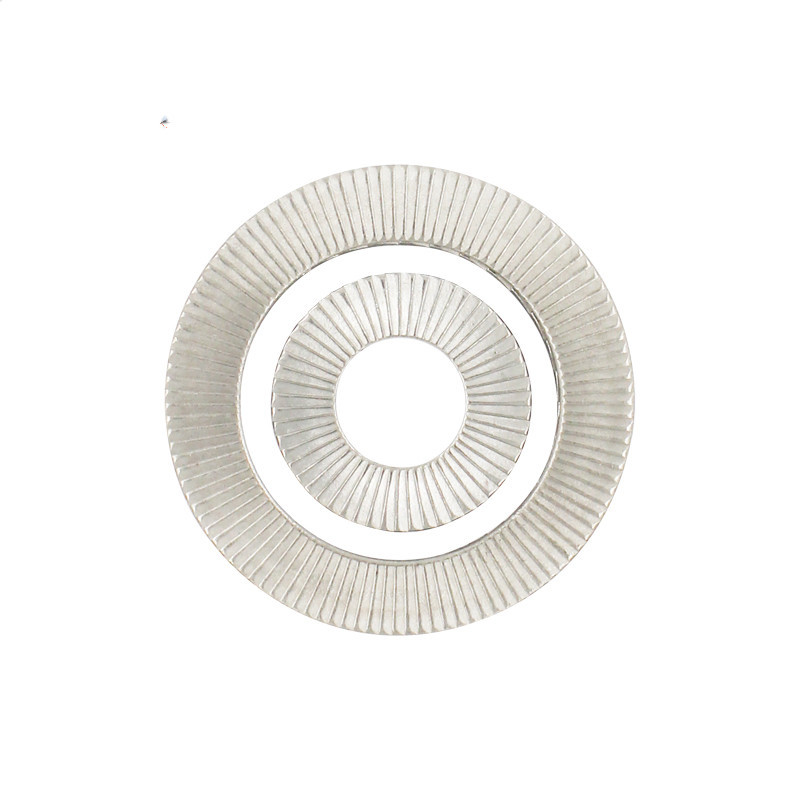

Product Photos and Information
| Name | Double Fold Lock Washers | Materials | Carbon Steel/Stainless Steel |
| Standards | DIN ISO UNC BSW JIS etc. | Strength level | 65MN 4.8 8.8 10.9 etc. |
| Size | M3-M18 | Surface finish | ZP\BLACK etc. |
| Length | 1-3.5 | Samples | Available |
|
|

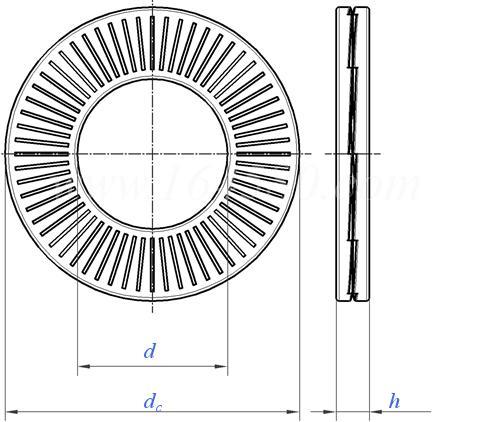

Product Standards
Double stack self-locking washers (carbon steel/stainless steel) DIN 25201
| Specification | 3 | 3.5 | 3.5 sp enlargement ② | 4 | 4 sp enlarged ② | 5 | 5 sp enlarged ② | 6 | 6 sp enlarged ② | 1/4 ① | 1/4 sp enlarged ① ② | 8 | 8 sp enlarged ② | 3/8 ① | ||||
| Bolt Specifications | Metric | M3 | M3.5 | M3.5 | M4 | M4 | M5 | M5 | M6 | M6 | - | - | M8 | M8 | - | |||
| Inches | #5 | #6 | #6 | #8 | #8 | #10 | #10 | - | - | 1/4" | 1/4" | 5/16" | 5/16" | 3/8" | ||||
| d | maximum value | 3.5 | 4 | 4 | 4.5 | 4.5 | 5.5 | 5.5 | 6.6 | 6.6 | 7.3 | 7.3 | 8.8 | 8.8 | 10.5 | |||
| minimum | 3.3 | 3.8 | 3.8 | 4.3 | 4.3 | 5.3 | 5.3 | 6.4 | 6.4 | 7.1 | 7.1 | 8.6 | 8.6 | 10.1 | ||||
| dc | Nominal | 7 | 7.6 | 9 | 7.6 | 9 | 9 | 10.8 | 10.8 | 13.5 | 11.5 | 13.5 | 13.5 | 16.6 | 16.6 | |||
| maximum value | 7.2 | 7.8 | 9.2 | 7.8 | 9.2 | 9.2 | 11 | 11 | 13.7 | 11.7 | 13.7 | 13.7 | 16.8 | 16.8 | ||||
| minimum | 6.8 | 7.4 | 8.8 | 7.4 | 8.8 | 8.8 | 10.6 | 10.6 | 13.3 | 11.3 | 13.3 | 13.3 | 16.4 | 16.4 | ||||
| h | carbon steel | Nominal | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | ||
| maximum value | 2.05 | 2.05 | 2.05 | 2.05 | 2.05 | 2.05 | 2.05 | 2.05 | 2.75 | 2.75 | 2.75 | 2.75 | 2.75 | 2.75 | ||||
| minimum | 1.55 | 1.55 | 1.55 | 1.55 | 1.55 | 1.55 | 1.55 | 1.55 | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 | ||||
| 1000 pieces weight kg ③ | carbon steel | ≈ | 0.3 | 0.4 | 0.6 | 0.4 | 0.6 | 0.5 | 1.1 | 0.7 | 2 | 0.8 | 1.8 | 1.5 | 2.8 | 2.3 | ||
| h | Stainless steel | Nominal | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2 | 2.2 | 2.2 | 2 | 2 | 2 | ||
| maximum value | 2.45 | 2.45 | 2.45 | 2.45 | 2.45 | 2.45 | 2.45 | 2.45 | 2.25 | 2.45 | 2.45 | 2.25 | 2.25 | 2.25 | ||||
| minimum | 1.95 | 1.95 | 1.95 | 1.95 | 1.95 | 1.95 | 1.95 | 1.95 | 1.75 | 1.95 | 1.95 | 1.75 | 1.75 | 1.75 | ||||
| 1000 pieces weight kg ③ | Stainless steel | ≈ | 0.4 | 0.4 | 0.7 | 0.4 | 0.7 | 0.6 | 1.1 | 0.9 | 1.6 | 0.9 | 1.5 | 1.2 | 2.3 | 1.9 | ||
| Specification | 3/8 sp enlarged ① ② | 10 | 10 sp enlarged ② | 11 | 12 | 12 sp enlarged ② | 1/2 ① | 1/2 sp oversized ① ② | 14 | 14 sp enlarged ② | 16 | 16 sp enlarged ② | 18 | 18 sp enlarged ② | ||||
| Bolt Specifications | Metric | - | M10 | M10 | M11 | M12 | M12 | - | - | M14 | M14 | M16 | M16 | M18 | M18 | |||
| Inches | 3/8" | - | - | 7/16” | - | - | 1/2" | 1/2" | 9/16” | 9/16” | 5/8" | 5/8" | - | - | ||||
| d | maximum value | 10.5 | 10.9 | 10.9 | 11.6 | 13.2 | 13.2 | 13.7 | 13.7 | 15.4 | 15.4 | 17.2 | 17.2 | 19.7 | 19.7 | |||
| minimum | 10.1 | 10.5 | 10.5 | 11.2 | 12.8 | 12.8 | 13.3 | 13.3 | 15 | 15 | 16.8 | 16.8 | 19.3 | 19.3 | ||||
| dc | Nominal | 21 | 16.6 | 21 | 18.5 | 19.5 | 25.4 | 19.5 | 25.4 | 23 | 30.7 | 25.4 | 30.7 | 29 | 34.5 | |||
| maximum value | 21.2 | 16.8 | 21.2 | 18.7 | 19.7 | 25.6 | 19.7 | 25.6 | 23.2 | 30.9 | 25.6 | 30.9 | 29.2 | 34.7 | ||||
| minimum | 20.8 | 16.4 | 20.8 | 18.3 | 19.3 | 25.2 | 19.3 | 25.2 | 22.8 | 30.5 | 25.2 | 30.5 | 28.8 | 34.3 | ||||
| h | carbon steel | Nominal | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 3.4 | 2.5 | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | ||
| maximum value | 2.75 | 2.75 | 2.75 | 2.75 | 2.75 | 3.65 | 2.75 | 3.65 | 3.65 | 3.65 | 3.65 | 3.65 | 3.65 | 3.65 | ||||
| minimum | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 | 3.15 | 2.25 | 3.15 | 3.15 | 3.15 | 3.15 | 3.15 | 3.15 | 3.15 | ||||
| 1000 pieces weight kg ③ | carbon steel | ≈ | 4.8 | 2.2 | 4.7 | 2.9 | 2.9 | 9.3 | 2.7 | 9 | 5.6 | 14.1 | 6.7 | 12.8 | 8.9 | 15.8 | ||
| h | Stainless steel | Nominal | 2 | 2 | 2 | 2.2 | 2 | 3 | 2 | 3.2 | 3 | 3.2 | 3 | 3.2 | 3.2 | 3.2 | ||
| maximum value | 2.25 | 2.25 | 2.25 | 2.45 | 2.25 | 3.25 | 2.25 | 3.45 | 3.25 | 3.45 | 3.25 | 3.45 | 3.45 | 3.45 | ||||
| minimum | 1.75 | 1.75 | 1.75 | 1.95 | 1.75 | 2.75 | 1.75 | 2.95 | 2.75 | 2.95 | 2.75 | 2.95 | 2.95 | 2.95 | ||||
| 1000 pieces weight kg ③ | Stainless steel | ≈ | 3.8 | 1.8 | 3.7 | 2.6 | 2.3 | 8.2 | 2.2 | 8 | 4.9 | 13.1 | 5.9 | 11.3 | 8 | 15.6 | ||
| Specification | 3/4 ① | 3/4 sp enlarged ① ② | 20 | 20 sp enlarged ② | twenty two | 22 sp enlarged ② | twenty four | 24 sp enlarged ② | 1 ① | 1 sp enlarged ① ② | 27 | 27 sp enlarged ② | 30 | 30 sp enlarged ② | ||||
| Bolt Specifications | Metric | - | - | M20 | M20 | M22 | M22 | M24 | M24 | - | - | M27 | M27 | M30 | M30 | |||
| Inches | 3/4" | 3/4" | - | - | 7/8" | 7/8" | - | - | 1" | 1" | - | - | 1 1/8" | 1 1/8" | ||||
| d | maximum value | 20.2 | 20.2 | 21.6 | 21.6 | 23.6 | 23.6 | 25.5 | 25.5 | 28.1 | 28.1 | 28.6 | 28.6 | 31.6 | 31.6 | |||
| minimum | 19.8 | 19.8 | 21.2 | 21.2 | 23.2 | 23.2 | 25.1 | 25.1 | 27.7 | 27.7 | 28.2 | 28.2 | 31.2 | 31.2 | ||||
| dc | Nominal | 30.7 | 39 | 30.7 | 39 | 34.5 | 42 | 39 | 48.5 | 39 | 48.5 | 42 | 48.5 | 47 | 58.5 | |||
| maximum value | 30.9 | 39.2 | 30.9 | 39.2 | 34.7 | 42.2 | 39.2 | 48.7 | 39.3 | 48.8 | 42.3 | 48.8 | 47.3 | 58.8 | ||||
| minimum | 30.5 | 38.8 | 30.5 | 38.8 | 34.3 | 41.8 | 38.8 | 48.3 | 38.7 | 48.2 | 41.7 | 48.2 | 46.7 | 58.2 | ||||
| h | carbon steel | Nominal | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | 4.6 | 3.4 | 4.6 | 3.4 | 4.6 | 5.8 | 5.8 | 5.8 | 6.6 | ||
| maximum value | 3.65 | 3.65 | 3.65 | 3.65 | 3.65 | 4.85 | 3.65 | 4.85 | 3.65 | 4.85 | 6.05 | 6.05 | 6.05 | 6.6 | ||||
| minimum | 3.15 | 3.15 | 3.15 | 3.15 | 3.15 | 4.35 | 3.15 | 4.35 | 3.15 | 4.35 | 5.55 | 5.55 | 5.55 | 6.1 | ||||
| 1000 pieces weight kg ③ | carbon steel | ≈ | 10.5 | 22.1 | 9.3 | 20.9 | 12.5 | 31.9 | 17.4 | 45.1 | 15.3 | 42 | 31.4 | 52.7 | 41 | 85.8 | ||
| h | Stainless steel | Nominal | 3.2 | 3.2 | 3 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 6.8 | 6.8 | 6.8 | 6.8 | ||
| maximum value | 3.45 | 3.45 | 3.25 | 3.45 | 3.45 | 3.45 | 3.45 | 3.45 | 3.2 | 3.2 | 6.8 | 6.8 | 6.8 | 6.8 | ||||
| minimum | 2.95 | 2.95 | 2.75 | 2.95 | 2.95 | 2.95 | 2.95 | 2.95 | 2.7 | 2.7 | 6.3 | 6.3 | 6.3 | 6.3 | ||||
| 1000 pieces weight kg ③ | Stainless steel | ≈ | 9.6 | 21 | 8.2 | 20.6 | 12.3 | 22.2 | 15.9 | 35 | 14.2 | 27.9 | 34.5 | 53.4 | 44.9 | 91.8 | ||
| Specification | 33 | 33 sp enlarged ② | 36 | 36 sp enlarged ② | 39 | 42 | 45 | 48 | 52 | 56 | 60 | 64 | 68 | 72 | ||||
| Bolt Specifications | Metric | M33 | M33 | M36 | M36 | M39 | M42 | M45 | M48 | M52 | M56 | M60 | M64 | M68 | M72 | |||
| Inches | 1 1/4" | 1 1/4" | 1 3/8" | 1 3/8" | 1 1/2" | - | 1 3/4" | - | 2" | 2 1/4" | - | 2 1/2" | - | - | ||||
| d | maximum value | 34.6 | 34.6 | 37.6 | 37.6 | 40.6 | 43.4 | 46.7 | 50.1 | 54.1 | 59.6 | 63.6 | 67.6 | 71.6 | 75.6 | |||
| minimum | 34.2 | 34.2 | 37.2 | 37.2 | 40.2 | 43 | 46.2 | 49.6 | 53.6 | 59.1 | 63.1 | 67.1 | 71.1 | 75.1 | ||||
| dc | Nominal | 48.5 | 58.5 | 55 | 63 | 58.5 | 63 | 70 | 75 | 80 | 85 | 90 | 95 | 100 | 105 | |||
| maximum value | 48.8 | 58.8 | 55.3 | 63.3 | 58.8 | 63.3 | 70 | 75 | 80 | 85 | 90 | 95 | 100 | 105 | ||||
| minimum | 48.2 | 58.2 | 54.7 | 62.7 | 58.2 | 62.7 | 68 | 73 | 78 | 83 | 88 | 93 | 98 | 103 | ||||
| h | carbon steel | Nominal | 5.8 | 6.6 | 5.8 | 6.6 | 5.8 | 5.8 | 7 | 7 | 7 | 7 | 7 | 7 | 9.5 | 9.5 | ||
| maximum value | 6.05 | 6.6 | 6.05 | 6.6 | 6.05 | 6.05 | 7.75 | 7.75 | 7.75 | 7.75 | 7.75 | 7.75 | 10.25 | 10.25 | ||||
| minimum | 5.55 | 6.1 | 5.55 | 6.1 | 5.55 | 5.55 | 6.25 | 6.25 | 6.25 | 6.25 | 6.25 | 6.25 | 8.75 | 8.75 | ||||
| 1000 pieces weight kg ③ | carbon steel | ≈ | 38.9 | 80 | 54.9 | 91.5 | 58.9 | 79.7 | 102 | 120 | 130 | 135 | 152 | 167 | 282 | 307 | ||
| h | Stainless steel | Nominal | 6.8 | / | 6.8 | / | 6.8 | 6.8 | 6.8 | 6.8 | 9 | 9 | 9 | 9 | 9 | 9 | ||
| maximum value | 6.8 | / | 6.8 | / | 6.8 | 6.8 | 7.55 | 7.55 | 9.75 | 9.75 | 9.75 | 9.75 | 9.75 | 9.75 | ||||
| minimum | 6.3 | / | 6.3 | / | 6.3 | 6.3 | 6.05 | 6.05 | 8.25 | 8.25 | 8.25 | 8.25 | 8.25 | 8.25 | ||||
| 1000 pieces weight kg ③ | Stainless steel | ≈ | 42.8 | / | 59.6 | / | 67.4 | 75 | 102 | 120 | 180.4 | 213 | 235 | 258 | 282 | 307 | ||
| Specification | 76 | 80 | 85 | 90 | 95 | 100 | 105 | 110 | 115 | 120 | 125 | 130 | ||||||
| Bolt Specifications | Metric | M76 | M80 | M85 | M90 | M95 | M100 | M105 | M110 | M115 | M120 | M125 | M130 | |||||
| Inches | 3” | 3 1/8" | - | - | - | 4” | - | - | - | - | - | 5” | ||||||
| d | maximum value | 79.6 | 83.6 | 88.6 | 92.9 | 97.9 | 103.9 | 108.9 | 113.9 | 118.9 | 123.9 | 128.9 | 133.9 | |||||
| minimum | 79.1 | 83.1 | 88.1 | 92.4 | 97.4 | 103.4 | 108.4 | 113.4 | 118.4 | 123.4 | 128.4 | 133.4 | ||||||
| dc | Nominal | 110 | 115 | 120 | 130 | 135 | 145 | 150 | 155 | 165 | 170 | 173 | 178 | |||||
| maximum value | 110 | 115 | 120 | 130 | 135 | 145 | 150 | 155 | 165 | 170 | 173 | 178 | ||||||
| minimum | 108 | 113 | 118 | 128 | 133 | 143 | 148 | 153 | 163 | 168 | 171 | 176 | ||||||
| h | carbon steel | Nominal | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | ||||
| maximum value | 10.25 | 10.25 | 10.25 | 10.25 | 10.25 | 10.25 | 10.25 | 10.25 | 10.25 | 10.25 | 10.25 | 10.25 | ||||||
| minimum | 8.75 | 8.75 | 8.75 | 8.75 | 8.75 | 8.75 | 8.75 | 8.75 | 8.75 | 8.75 | 8.75 | 8.75 | ||||||
| 1000 pieces weight kg ③ | carbon steel | ≈ | 333 | 360 | 378 | 477 | 498 | 589 | 613 | 635 | 753 | 779 | 766 | 792 | ||||
| h | Stainless steel | Nominal | 9 | 9 | / | / | / | / | / | / | / | / | / | / | ||||
| maximum value | 9.75 | 9.75 | / | / | / | / | / | / | / | / | / | / | ||||||
| minimum | 8.25 | 8.25 | / | / | / | / | / | / | / | / | / | / | ||||||
| 1000 pieces weight kg ③ | Stainless steel | ≈ | 333 | 360 | / | / | / | / | / | / | / | / | / | / | ||||
| ①, here is inches. | ||||||||||||||||||
| ②, increase the size | ||||||||||||||||||
| ③, "thousand-piece weight" can be understood as "the weight of each thousand sets of washers" | ||||||||||||||||||
