Stainless Steel A2-70 A4-80 SS201 SS304 SS316 Insert Nuts

Category: Prouct

Key words：

High Strength Grade 4 8 10 12 Steel Color Yellow Zinc Plated Insert Nuts

We are committed to become the world's top fastening solutions provider, let Chinese prod-uct enterworld class, let the Chengyi production become synonymous with quality. To this end we need perseverance. At the same time, we also shoulder the responsibility of the society and the expectations of theemployees. In the future, we will become a respected enterprise.

Email us：admin@hbcy-fastener.com

Back to list

Message

Send Email

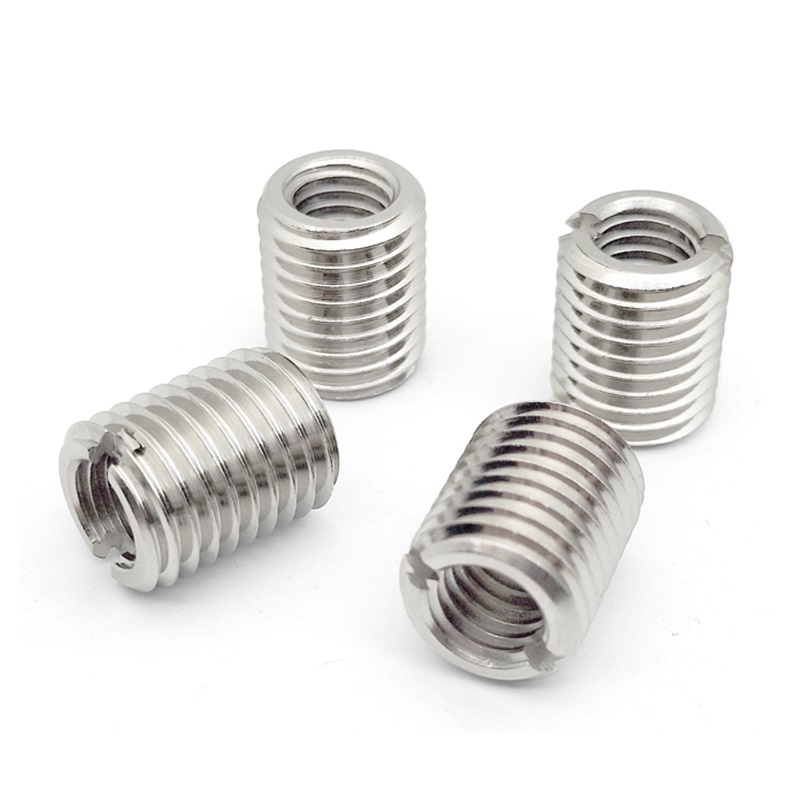

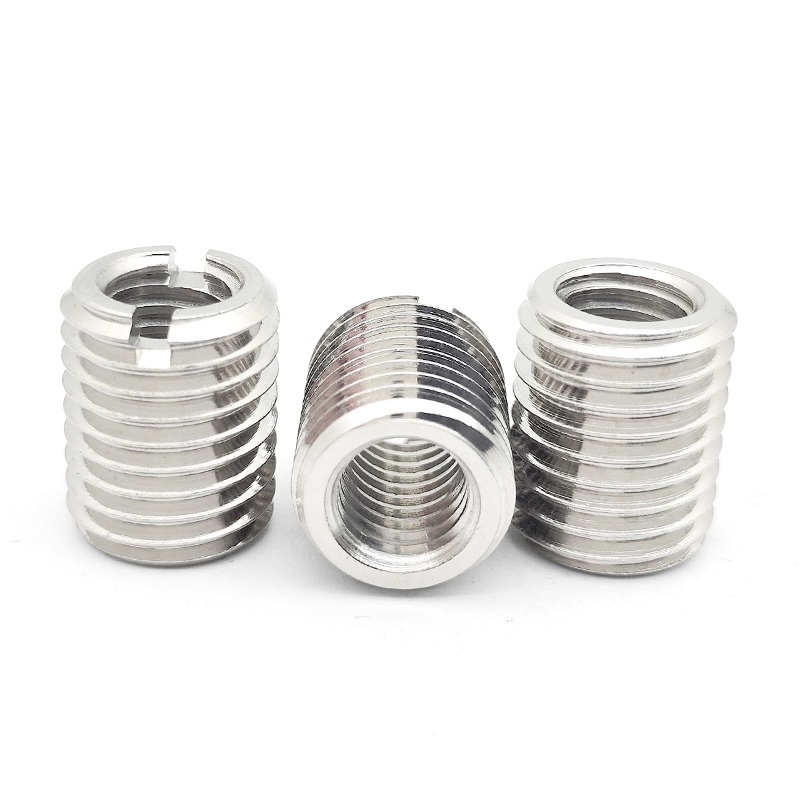

Product Photos and Information

Name	Insert Nuts	Materials	Carbon Steel/Stainless Steel
Standards	DIN ISO UNC BSW JIS etc.	Strength level	4 5 etc.
Size	M3-M12	Surface finish	ZP\BLACK etc.
Length	10-32	Samples	Available

Product Standards

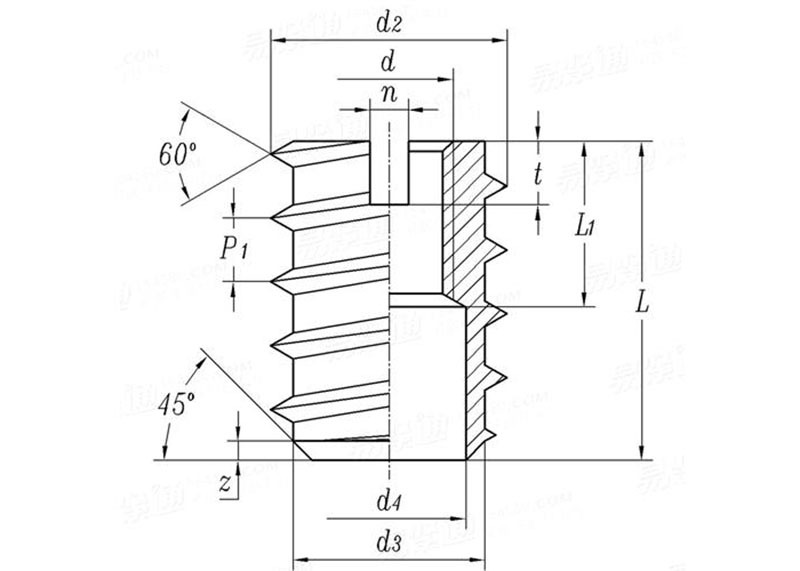

Slotted threaded inserts (threaded plugs) DIN 7965

Thread specification	M3	M4	M5	M6	M8	M10	M12	M16	M20
d	M3	M4	M5	M6	M8	M10	M12	M16	M20
d 2	6	8	10	12	16	18.5	twenty two	25	29
d 3	4.5	5.5	7.5	9.5	12.5	15	18	20.5	twenty four
d 4	3.5	4.5	6	7.5	10	12	15	17.5	twenty one
P1 _	2	2.5	3.5	4	5	5	5	5	5
L 1	5	6	7	9	11	13	16	16	20
n	1	1.2	1.6	2	2.5	3	3	4	5
t	2	2	3	3	4	5	5	6	6
With	0.6	0.6	0.8	1	1	1.6	1.6	1.6	1.6
