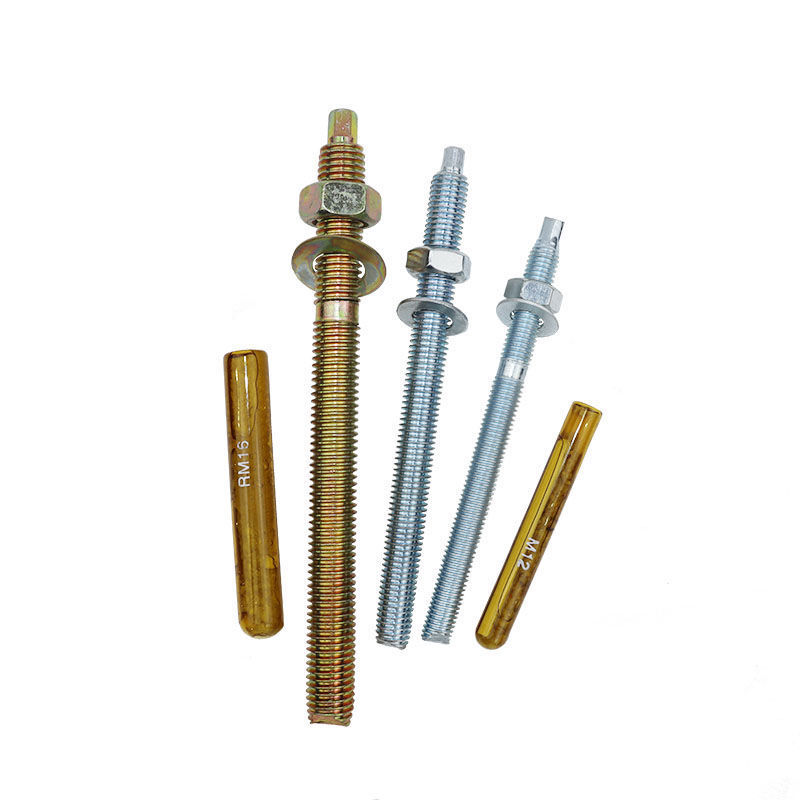

White Blue Zinc Plated Steel Chemical Anchor Bolts

Category: Prouct

Key words：

White Blue Zinc Plated Steel Chemical Anchor Bolts

We are committed to become the world's top fastening solutions provider, let Chinese prod-uct enterworld class, let the Chengyi production become synonymous with quality. To this end we need perseverance. At the same time, we also shoulder the responsibility of the society and the expectations of theemployees. In the future, we will become a respected enterprise.

Email us：admin@hbcy-fastener.com

Back to list

Message

Send Email

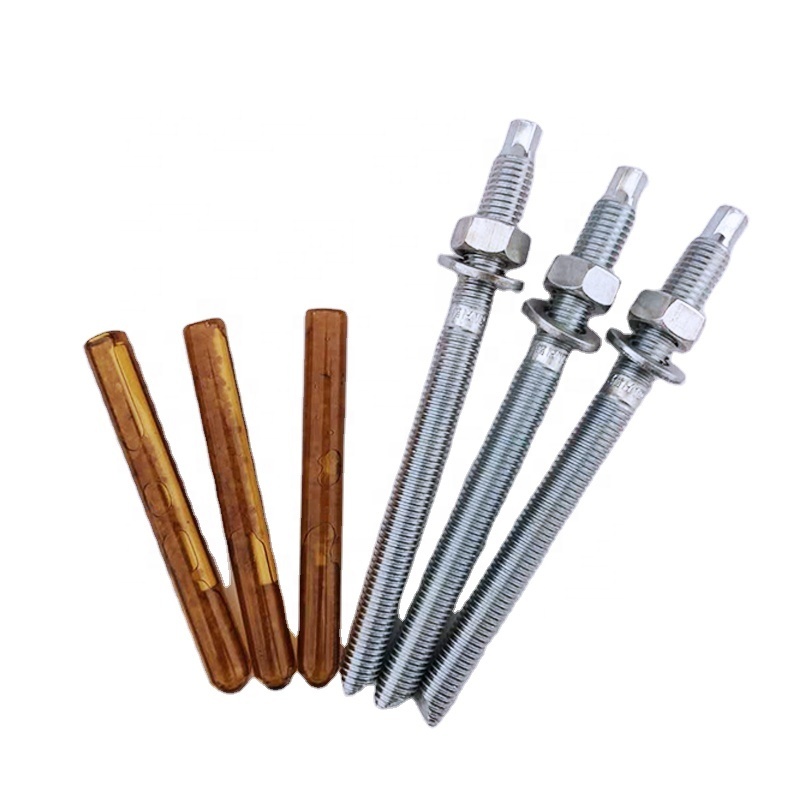

Product Photos and Information

Name	Chemical anchor bolt	Materials	Carbon Steel/Stainless Steel
Standards	DIN ISO UNC BSW JIS etc.	Strength level	4.8 8.8 10.9 etc.
Size	M12-M64	Surface finish	ZP\Plain etc.
Length	\	Samples	Available

Product Standards

Chemical anchor bolt JB /ZQ 4757

Thread size		M12	M16	M20	M24	M30	M36	M42	M48	M56	M64
d		M12	M16	M20	M24	M30	M36	M42	M48	M56	M64
D	Drilling diameter	15	20	25	30	36	42	48	55	62	72
t	installation depth	110	125	170	210	280	300	350	400	500	600
h	Stud exposed length	30	35	40	50	60	80	90	100	120	130
Single weight≈kg	With nut and washer (L=100mm)	0.113	0.205	0.336	0.505	0.857	1.32	1.94	2.76	3.87	5.1
Every 10mm increase		0.009	0.016	0.025	0.036	0.055	0.08	0.109	0.142	0.193	0.252
