Stainless Steel A2 A4 SS201 SS304 SS316 Elevator Expansion Bolts

Category: Prouct

Key words：

Stainless Steel A2 A4 SS201 SS304 SS316 Elevator Expansion Bolts

We are committed to become the world's top fastening solutions provider, let Chinese prod-uct enterworld class, let the Chengyi production become synonymous with quality. To this end we need perseverance. At the same time, we also shoulder the responsibility of the society and the expectations of theemployees. In the future, we will become a respected enterprise.

Email us：admin@hbcy-fastener.com

Back to list

Message

Send Email

Product Photos and Information

Name	Elevator Expansion Bolt	Materials	Carbon Steel/Stainless Steel
Standards	DIN ISO UNC BSW JIS etc.	Strength level	4.8 8.8 10.9 etc.
Size	M6-M20	Surface finish	ZP\Plain etc.
Length	50-200	Samples	Available

Product Standards

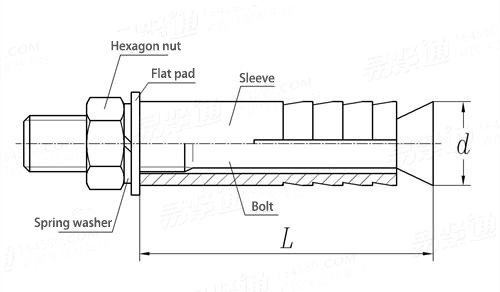

Elevator expansion bolt

Specification	M6*50	M8*65	M8*70	M10*70	M10*80	M10*100	M12*100	M12*120	M12*150	M16*100	M16*120	M16*150	M16*200	M20*160	M20*120
Specification	M6*50	M8*65	M8*70	M10*70	M10*80	M10*100	M12*100	M12*120	M12*150	M16*100	M16*120	M16*150	M16*200	M20*160	M20*120
inch	1/4	1/3	1/3	3/8	3/8	3/8	1/2	1/2	1/2	5/8	5/8	5/8	5/8	3/4	3/4
Casing diameter	9.5	12	12	14	14	14	17.2	17.2	17.2	21.6	21.6	21.6	21.6	25.4	25.4
Casing length	30	35	35	40	40	40	50	50	50	50	60	60	60	80	80
Drill diameter	9.5	12	12	14.5	14.5	14.5	18	18	18	22	22	22	22	26	26
tensile load	890	1390	1390	1600	1600	1600	2540	2540	2540	3300	3300	3300	3300	4950	4950
