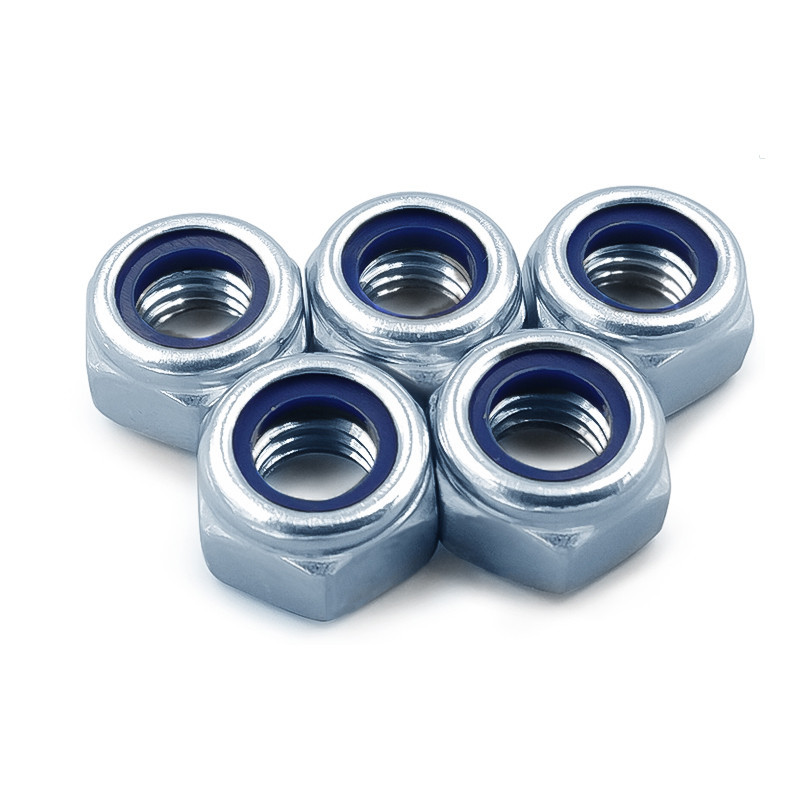

High Strength Grade 4 8 10 12 Steel Galvanized Blue White Zinc Plated DIN982 DIN985 Nylon Lock Nuts Nylock Nuts
Key words：
High Strength Grade 4 8 10 12 Steel Galvanized Blue White Zinc Plated DIN982 DIN985 Nylon Lock Nuts Nylock Nuts
Email us：admin@hbcy-fastener.com
Related Products
Product Details
Product Photos and Information
| Name | Nylock Nuts | Materials | Carbon Steel/Stainless Steel |
| Standards | DIN ISO UNC BSW JIS etc. | Strength level | 4 5 8 10 12 A2-70 A4-70 A4-80 etc. |
| Size | M3-M50 | Surface finish | ZP\HDG\BLACK\Dacromet etc. |
| Length | 1-32 | Samples | Available |
|
|
Product Standards
Nylock Nuts Non-metallic insert lock nuts DIN 982
| Thread specification | M6 | M7 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | |||
| d | ||||||||||||||
| P | pitch | coarse teeth | 1 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | |
| fine teeth | / | / | 1 | 1 | 1.5 | 1.5 | 1.5 | 2 | 2 | 2 | 2 | |||
| fine teeth | / | / | / | 1.25 | 1.25 | / | / | 1.5 | 1.5 | 1.5 | / | |||
| d a | minimum | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | twenty two | twenty four | ||
| maximum value | 6.75 | 7.75 | 8.75 | 10.8 | 13 | 15.1 | 17.3 | 19.5 | 21.6 | 23.7 | 25.9 | |||
| dw | minimum | 8.9 | 9.6 | 11.6 | 15.6 | 17.4 | 20.5 | 22.5 | 24.9 | 27.7 | 29.5 | 33.2 | ||
| and | minimum | 11.05 | 12.12 | 14.38 | 18.9 | 21.1 | 24.49 | 26.75 | 29.56 | 32.95 | 35.03 | 39.55 | ||
| h | max = nominal | 8 | 8.5 | 9.5 | 11.5 | 14 | 16 | 18 | 20 | twenty two | 25 | 28 | ||
| minimum | 7.7 | 8.2 | 9.14 | 11.14 | 13.64 | 15.3 | 17.3 | 19.16 | 20.7 | 23.7 | 26.7 | |||
| m | minimum | 4.9 | 6.14 | 6.44 | 8.04 | 10.37 | 12.1 | 14.1 | 15.1 | 16.9 | 18.1 | 20.2 | ||
| mw | minimum | 3.92 | 4.91 | 5.15 | 6.43 | 8.3 | 9.68 | 11.28 | 12.08 | 13.52 | 14.48 | 16.16 | ||
| s | max = nominal | 10 | 11 | 13 | 17 | 19 | twenty two | twenty four | 27 | 30 | 32 | 36 | ||
| minimum | 9.78 | 10.73 | 12.73 | 16.73 | 18.67 | 21.67 | 23.67 | 26.16 | 29.16 | 31 | 35 | |||
| Thousand pieces (steel)≈kg | 3.1 | 3.2 | 6 | 11.7 | 16.6 | twenty one | 37.8 | 51.6 | 68 | 86 | 127 | |||
Nylock Nuts Low profile lock nuts with non-metallic inserts DIN 985
| Thread size | M3 | M4 | M5 | M6 | M7 | M8 | M10 | M12 | M14 | M16 | M18 | |||
| d | ||||||||||||||
| P | pitch | coarse teeth | 0.5 | 0.7 | 0.8 | 1 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | |
| fine teeth 1 | / | / | / | / | / | 1 | 1 | 1.5 | 1.5 | 1.5 | 2 | |||
| fine teeth 2 | / | / | / | / | / | / | 1.25 | 1.25 | / | / | 1.5 | |||
| d a | minimum | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 18 | ||
| maximum value | 3.45 | 4.6 | 5.75 | 6.75 | 7.75 | 8.75 | 10.8 | 13 | 15.1 | 17.3 | 19.5 | |||
| dw | minimum | 4.6 | 5.9 | 6.9 | 8.9 | 9.6 | 11.6 | 15.6 | 17.4 | 20.5 | 22.5 | 24.9 | ||
| and | minimum | 6.01 | 7.66 | 8.79 | 11.05 | 12.12 | 14.38 | 18.9 | 21.1 | 24.49 | 26.75 | 29.56 | ||
| h | max = nominal | 4 | 5 | 5 | 6 | 7.5 | 8 | 10 | 12 | 14 | 16 | 18.5 | ||
| minimum | 3.7 | 4.7 | 4.7 | 5.7 | 7.14 | 7.64 | 9.64 | 11.57 | 13.3 | 15.3 | 17.66 | |||
| m | minimum | 2.4 | 2.9 | 3.2 | 4 | 4.7 | 5.5 | 6.5 | 8 | 9.5 | 10.5 | 13 | ||
| mw | minimum | 1.65 | 2.2 | 2.75 | 3.3 | 3.85 | 4.4 | 5.5 | 6.6 | 7.7 | 8.8 | 9.9 | ||
| s | max = nominal | 5.5 | 7 | 8 | 10 | 11 | 13 | 17 | 19 | twenty two | twenty four | 27 | ||
| minimum | 5.32 | 6.78 | 7.78 | 9.78 | 10.73 | 12.73 | 16.73 | 18.67 | 21.67 | 23.67 | 26.16 | |||
| 1000 pieces weight kg | 0.5 | 1 | 1.4 | 2.4 | 3 | 5.1 | 10.6 | 17.2 | 26 | 34 | 45 | |||
| Thread size | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 | M42 | M45 | M48 | |||
| d | ||||||||||||||
| P | pitch | coarse teeth | 2.5 | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4 | 4.5 | 4.5 | 5 | |
| fine teeth 1 | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | |||
| fine teeth 2 | 1.5 | 1.5 | / | / | / | / | / | / | / | / | / | |||
| d a | minimum | 20 | twenty two | twenty four | 27 | 30 | 33 | 36 | 39 | 42 | 45 | 48 | ||
| maximum value | 21.6 | 23.7 | 25.9 | 29.1 | 32.4 | 35.6 | 38.9 | 42.1 | 45.4 | 48.6 | 51.8 | |||
| dw | minimum | 27.7 | 29.5 | 33.2 | 38 | 42.7 | 46.6 | 51.1 | 55.9 | 60.6 | 64.7 | 69.4 | ||
| and | minimum | 32.95 | 35.03 | 39.55 | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 | 72.09 | 76.95 | 82.6 | ||
| h | max = nominal | 20 | twenty two | twenty four | 27 | 30 | 33 | 36 | 39 | 42 | 45 | 48 | ||
| minimum | 18.7 | 20.7 | 22.7 | 25.7 | 28.7 | 31.4 | 34.4 | 37.4 | 40.4 | 43.4 | 46.4 | |||
| m | minimum | 14 | 15 | 15 | 17 | 19 | twenty two | 25 | 27 | 29 | 32 | 36 | ||
| mw | minimum | 11 | 12.2 | 13.2 | 14.8 | 16.5 | 18.2 | 19.8 | 21.5 | 23.1 | 24.8 | 26.5 | ||
| s | max = nominal | 30 | 32 | 36 | 41 | 46 | 50 | 55 | 60 | 65 | 70 | 75 | ||
| minimum | 29.16 | 31 | 35 | 40 | 45 | 49 | 53.8 | 58.8 | 63.8 | 68.1 | 73.1 | |||
| 1000 pieces weight kg | 65 | 75 | 100 | 162 | 212 | 317 | 415 | 499 | 628 | 771 | 998 | |||
