Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN580 Eye Bols

Category: Prouct

Key words：

Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN580 Eye Bols

We are committed to become the world's top fastening solutions provider, let Chinese prod-uct enterworld class, let the Chengyi production become synonymous with quality. To this end we need perseverance. At the same time, we also shoulder the responsibility of the society and the expectations of theemployees. In the future, we will become a respected enterprise.

Email us：admin@hbcy-fastener.com

Back to list

Message

Send Email

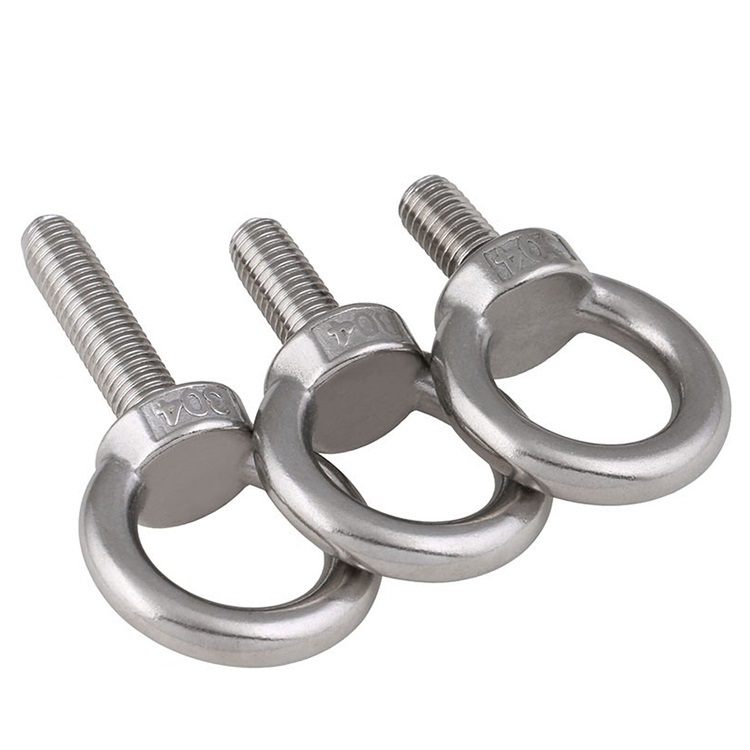

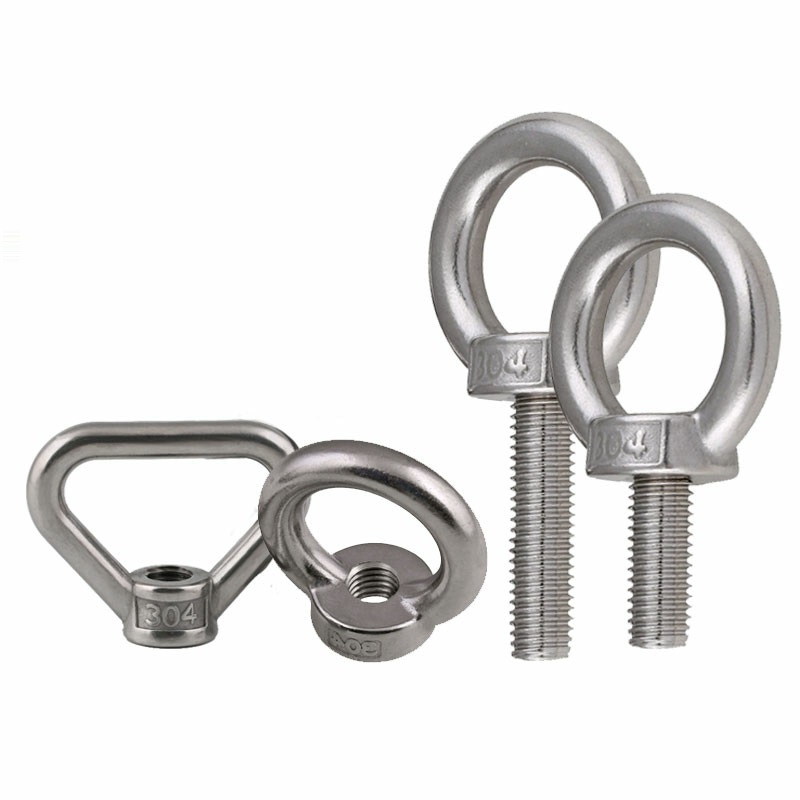

Product Photos and Information

Name	Eye bolts	Materials	Carbon Steel/Stainless Steel
Standards	DIN ISO UNC BSW JIS etc.	Strength level	4.8 8.8 10.9 12.9 A2-70 A4-70 A4-80
Size	M3-M50	Surface finish	ZP\HDG\BLACK\Dacromet etc.
Length	15-500	Samples	Available

Product Standards

Eyebolts DIN 580

Thread specification		M8	M10	M12	M16	M20	M24	M30	M36	M42	M48	M56	M64	M72×6	M80×6	M100×6
d		M8	M10	M12	M16	M20	M24	M30	M36	M42	M48	M56	M64	M72×6	M80×6	M100×6
d 2	Nominal	20	25	30	35	40	50	65	75	85	100	110	120	150	170	190
	minimum	19.5	24.5	29.5	34.5	39.3	49.3	64.3	74.3	84.2	99.1	108.9	118.8	148.7	168.5	188.5
	maximum value	21.1	26.1	31.1	36.2	41.3	51.3	66.3	76.5	86.7	101.9	112.1	122.4	152.7	173	193
d 3	Nominal	36	45	54	63	72	90	108	126	144	166	184	206	260	296	330
	minimum	35.4	44.4	53.4	62.4	71.3	89.3	107.3	125.2	143.1	164.8	182.8	204.7	258.3	294.3	328.3
	maximum value	37.2	46.2	55.2	64.2	73.3	91.3	109.5	127.7	145.9	168.4	186.4	208.7	263.3	299.3	333.3
d 4	Nominal	20	25	30	35	40	50	60	70	80	90	100	110	140	160	180
	minimum	18.9	23.9	28.9	33.8	38.7	48.7	58.7	68.5	78.3	88.1	98.1	107.6	137.3	157.3	177
	maximum value	20.5	25.5	30.5	35.6	40.7	50.7	60.7	70.7	80.8	90.9	100.9	111.2	141.3	161.3	181.5
and	Nominal	6	8	10	12	14	18	twenty two	26	30	35	38	42	50	55	60
	minimum	5.5	7.5	9.5	11.5	13.4	17.4	21.4	25.3	29.3	34.1	37.1	40.9	48.8	53.8	58.8
	maximum value	7.1	9.1	11.1	13.1	15.2	19.2	23.2	27.3	31.5	36.9	39.9	44.1	52.4	57.4	62.4
f	maximum value	2.5	3	3.5	4	5	6	7	8	9	10	11	12	12	12	12
ds	max = nominal	6	7.7	9.4	13	16.4	19.6	25	30.3	35.6	41	48.3	55.7	63.7	71.7	91.7
ds	minimum	5.82	7.48	9.18	12.73	16.13	19.27	24.67	29.91	35.21	40.61	47.91	55.24	63.24	71.24	91.16
h	Nominal	36	45	53	62	71	90	109	128	147	168	187	208	260	298	330
	minimum	35.4	44.4	52.4	61.4	70.3	89.3	108.3	127.2	146.1	166.8	185.8	206.7	258.3	296.3	328.3
	maximum value	37.2	46.2	54.2	63.2	72.3	91.3	110.5	129.7	148.9	168.4	189.4	210.7	263.3	301.3	333.3
k	Nominal	8	10	12	14	16	20	twenty four	28	32	38	42	48	60	68	75
	minimum	7.5	9.5	11.5	13.5	15.4	19.4	23.4	27.3	31.3	37.1	41.1	46.9	58.8	66.8	73.8
	maximum value	9.1	11.1	13.1	15.1	17.2	21.2	25.2	29.3	33.5	39.9	43.9	50.1	62.4	70.4	77.4
L	Nominal	13	17	20.5	27	30	36	45	54	63	68	78	90	100	112	130
	minimum	12.71	16.71	20.15	26.65	29.58	35.5	44.5	53.5	62.5	67.5	77.4	89.4	99.4	111.3	129.2
	maximum value	13.29	17.29	20.85	27.35	30.42	36.5	45.5	54.5	63.5	68.5	78.6	90.6	100.6	112.7	130.7
m	Nominal	10	12	14	16	19	twenty four	28	32	38	46	50	58	72	80	88
	minimum	9.5	11.5	13.5	15.5	18.4	23.4	27.4	31.3	37.2	45.1	49.1	56.9	70.8	78.8	86.8
	maximum value	11.1	13.1	15.1	17.1	20.2	25.2	29.2	33.3	39.5	47.9	51.9	60.1	74.4	82.4	90.4
Single weight (steel)≈kg		0.06	0.11	0.18	0.28	0.45	0.74	1.66	2.65	4.03	6.38	8.8	12.4	23.3	34.2	49.1
