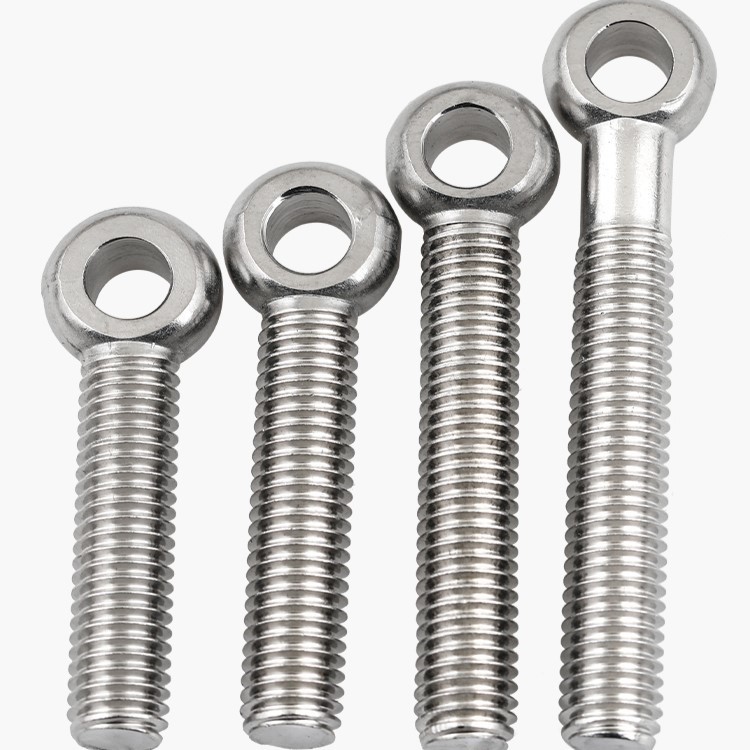

Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN444 Eye Bolts

Category: Prouct

Key words：

Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN444 Eye Bolts

We are committed to become the world's top fastening solutions provider, let Chinese prod-uct enterworld class, let the Chengyi production become synonymous with quality. To this end we need perseverance. At the same time, we also shoulder the responsibility of the society and the expectations of theemployees. In the future, we will become a respected enterprise.

Email us：admin@hbcy-fastener.com

Back to list

Message

Send Email

Product Photos and Information

Name	Eye Bolts	Materials	Carbon Steel/Stainless Steel
Standards	DIN ISO UNC BSW JIS etc.	Strength level	4.8 8.8 10.9 12.9 A2-70 A4-70 A4-80
Size	M3-M50	Surface finish	ZP\HDG\BLACK\Dacromet etc.
Length	15-500	Samples	Available

Product Standards

Joint Eye Bolts DIN 444

Thread specification			M5	M6	M8	M10	M12	M16	M20	M24	(M27)
d			M5	M6	M8	M10	M12	M16	M20	M24	(M27)
P	pitch		0.8	1	1.25	1.5	1.75	2	2.5	3	3
b	L≤125		16	18	twenty two	26	30	38	46	54	60
	125＜L≤200		-	-	28	32	36	44	52	60	66
	L＞200		-	-	-	-	49	57	65	73	79
d 1	maximum value		5.03	6.03	8.036	10.036	12.043	16.043	18.043	22.052	24.052
d 1	minimum		5	6	8	10	12	16	18	twenty two	twenty four
dk	Types A, B and C	maximum value	12	14	18	20	25	32	40	45	50
	Type A	minimum	10.9	12.9	16.9	18.7	23.7	30.4	38.4	43.4	48.4
	Type B and C	minimum	11.57	13.57	17.57	19.48	24.48	31.38	39.38	44.38	49.38
s	Type A	maximum value	8	9	11	14	17	19	twenty four	28	30
	Type A	minimum	7.52	8.52	10.3	13.3	16.3	18.16	23.16	27.16	29.16
	Type B and C	maximum value	6	7	9	12	14	17	twenty two	25	27
	Type B and C	minimum	5.88	6.85	8.85	11.82	13.82	16.82	21.79	24.79	26.79
Thousand pieces of steel weight ≈kg			-	-	-	-	-	-	-	-	-
thread length b			-	-	-	-	-	-	-	-	-

Thread specification			(M27)	M30	M30	(M33)	M36	M36	(M39)	(M39)
d			(M27)	M30	M30	(M33)	M36	M36	(M39)	(M39)
P	pitch		3	3.5	3.5	3.5	4	4	4	4
b	L≤125		60	66	66	-	-	-	-	-
	125＜L≤200		66	72	72	78	84	84	90	90
	L＞200		79	85	85	91	97	97	103	103
d 1	maximum value		25.052	27.052	28.052	30.052	32.062	33.062	35.062	36.062
d 1	minimum		25	27	28	30	32	33	35	36
dk	Types A, B and C	maximum value	50	55	55	60	65	65	70	70
	Type A	minimum	48.4	53.1	53.1	58.1	63.1	63.1	68.1	68.1
	Type B and C	minimum	49.38	54.26	54.26	59.26	64.26	64.26	69.26	69.26
s	Type A	maximum value	30	34	34	38	41	41	46	46
	Type A	minimum	29.16	33	33	37	40	40	45	45
	Type B and C	maximum value	27	30	30	34	38	38	41	41
	Type B and C	minimum	26.79	29.79	29.79	33.75	37.75	37.75	40.75	40.75
Thousand pieces of steel weight ≈kg			-	-	-	-	-	-	-	-
thread length b			-	-	-	-	-	-	-	-
